Kaywin manufactures acrylic paint markers, permanent markers, metallic markers and specialty paint pens for global stationery brands, distributors, retail chains and private-label programs. From ink formulation and nib engineering to barrel molding, testing and packaging, we support custom projects with a minimum order quantity of 5,000 pcs/model and compliance documentation for major export markets.
Choose the ink system, opacity, nib structure and refill format around your target use. Our core paint marker range covers water-based acrylic markers for creative applications, alcohol-based permanent markers for durable identification, and metallic or specialty effects for high-visibility decoration.
Water-based pigment or acrylic ink provides bright, opaque coverage on both dark and light surfaces. Once dry, the marking is waterproof and smudge-resistant, making this range suitable for art, craft, DIY, canvas, rock, wood, glass and ceramic projects.

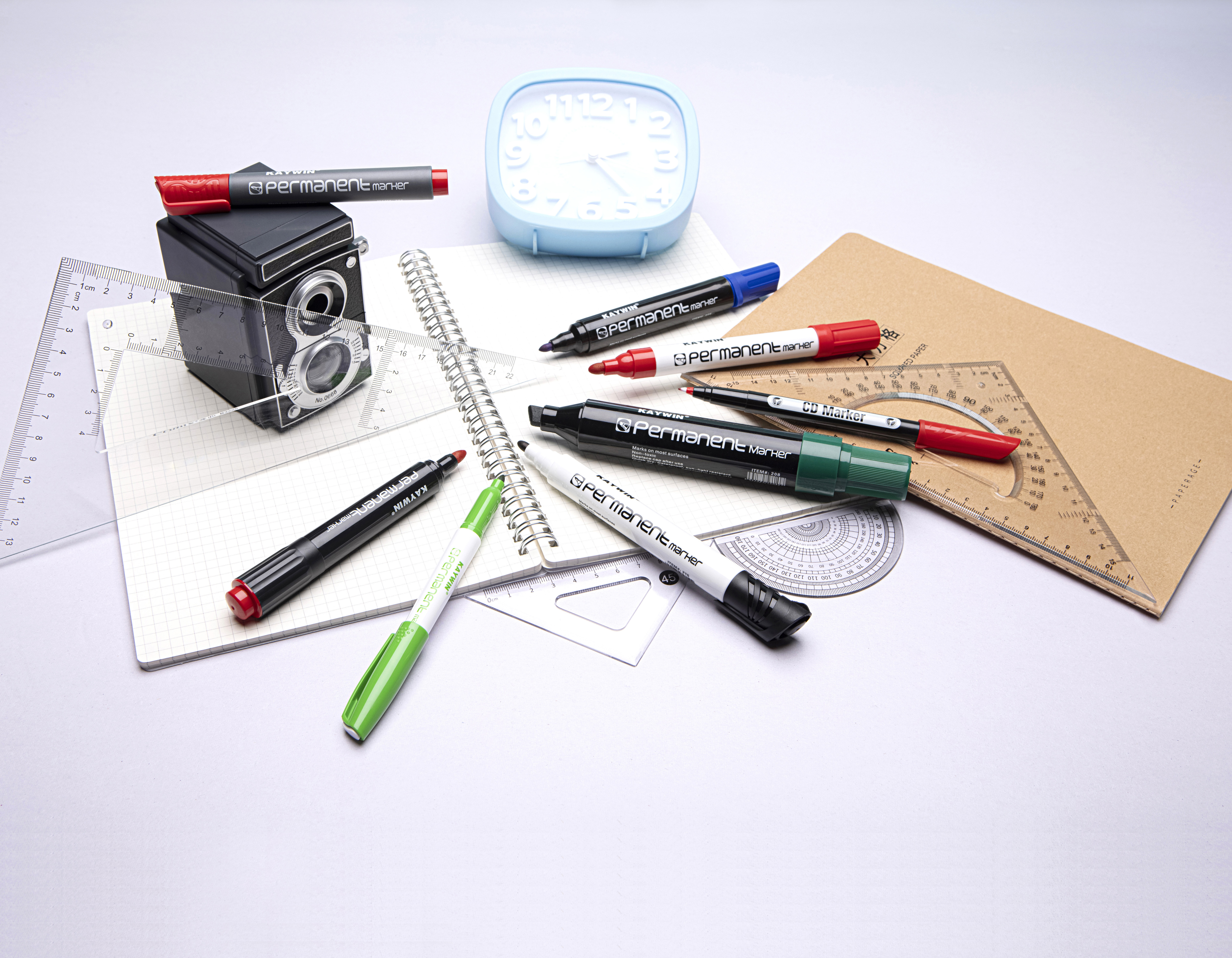

Alcohol-based permanent and ultra-permanent ink systems are designed for fast drying, water resistance and durable marking. Selected models provide strong scratch resistance and refillable high-capacity ink systems for repeated use.

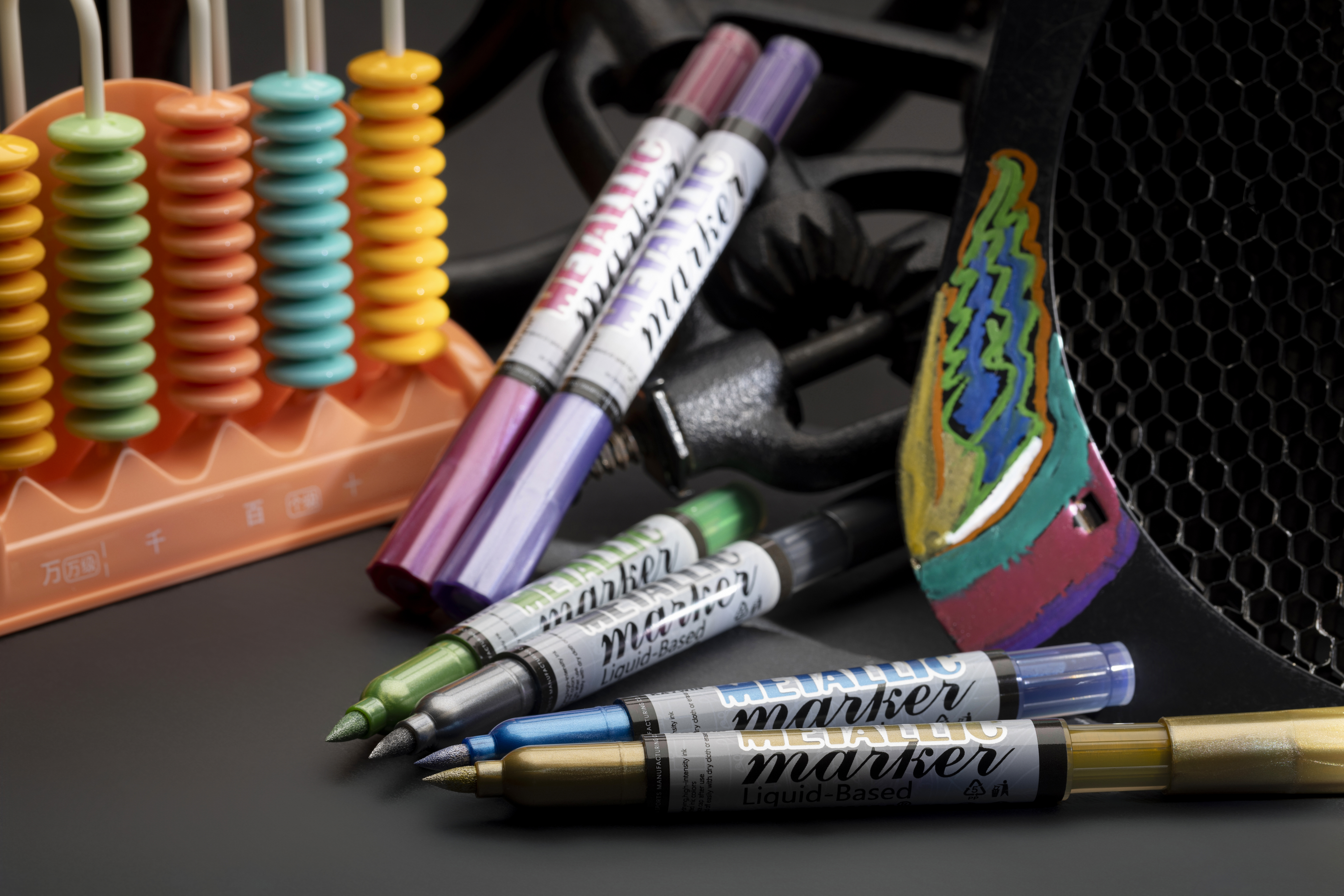

Metallic, glitter and other specialty formulations create an opaque lacquer-like finish with high visibility on dark paper and decorative surfaces. Custom color development helps brands create differentiated seasonal, gifting and art-supply ranges.
Share target surfaces, price level, set size and compliance requirements. We can recommend suitable ink and nib structures.
Kaywin builds paint marker inks around the key factors that matter most in real use: opacity, drying speed, adhesion, weather resistance and smooth ink flow. Its 180+ in-house formulations cover water-based, alcohol-based, oil-based, metallic and other specialty systems, giving buyers flexible options for different surfaces and price levels.
Formulas can also be adapted for humidity, UV exposure and end-use needs, with options such as water resistance, smudge resistance and Pantone color matching for both indoor and outdoor applications.
| Substrate | Surface Dry | Full Cure | Preparation Guidance |
|---|---|---|---|
| Glass / Ceramic | 3–5 min | 24 h | Clean and oil-free surface |
| Metal (galvanized iron / stainless steel) | 4–6 min | 24–36 h | Remove oil, dust and release residue |
| PVC | 5–8 min | 36 h | Usually direct marking after cleaning |
| PP / PE | 6–9 min | 48 h | Plasma activation or suitable PP primer recommended |
| Wood / MDF | 2–4 min | 18–24 h | Clean, dry surface gives best results |
Send the substrate, operating conditions and expected durability target for formula evaluation.
A paint pen must deliver stable ink flow as well as the right line width. Kaywin supports 13+ tip structures, porous fiber nibs with strong pressure resistance, valve-action ink delivery and refillable cartridge formats for selected models.
Fine, felt, chisel, conical, bullet, jumbo, medium, dot, retractable, blocked, stamp, linear and dual-tip structures are available, with brush and super-brush options for expressive drawing.
Extra-fine tips can reach 0.03–0.1 mm, fine tips 0.2–0.5 mm, fineliners 0.3/0.4/0.5/0.8 mm, while fiber tips can be customized from 2.0 to 9.4 mm.
Valve-action systems are engineered for consistent flow from the first stroke to the last. Wax-sealed tips and tested cartridge structures help reduce leakage during storage and bulk transport.
| Model | Type | Writing Distance | Ink Weight | Approx. Volume |
|---|---|---|---|---|
| P-Q-2206-A | Acrylic Paint Marker | 400 m | 8.5 g | ≈7.14 mL |
| 2-Q-2409 | Refillable Permanent Marker | 280 m | 7.5 g | ≈6.3 mL |
| 2-S-2206 | Large-bore Permanent Marker | 250 m | 3.5 g | ≈2.94 mL |
| 2-S-625 | Custom Permanent Marker | ≈220 m | 2.3 g | ≈1.93 mL |
| 1-Q-2406 | Metallic Soft-tip Marker | 200 m | 2.4 g | ≈2.02 mL |
Each production batch undergoes a standardized 350 m continuous writing test with a test report for consistency verification.
Ask for model recommendations based on your retail price point or industrial marking requirement.

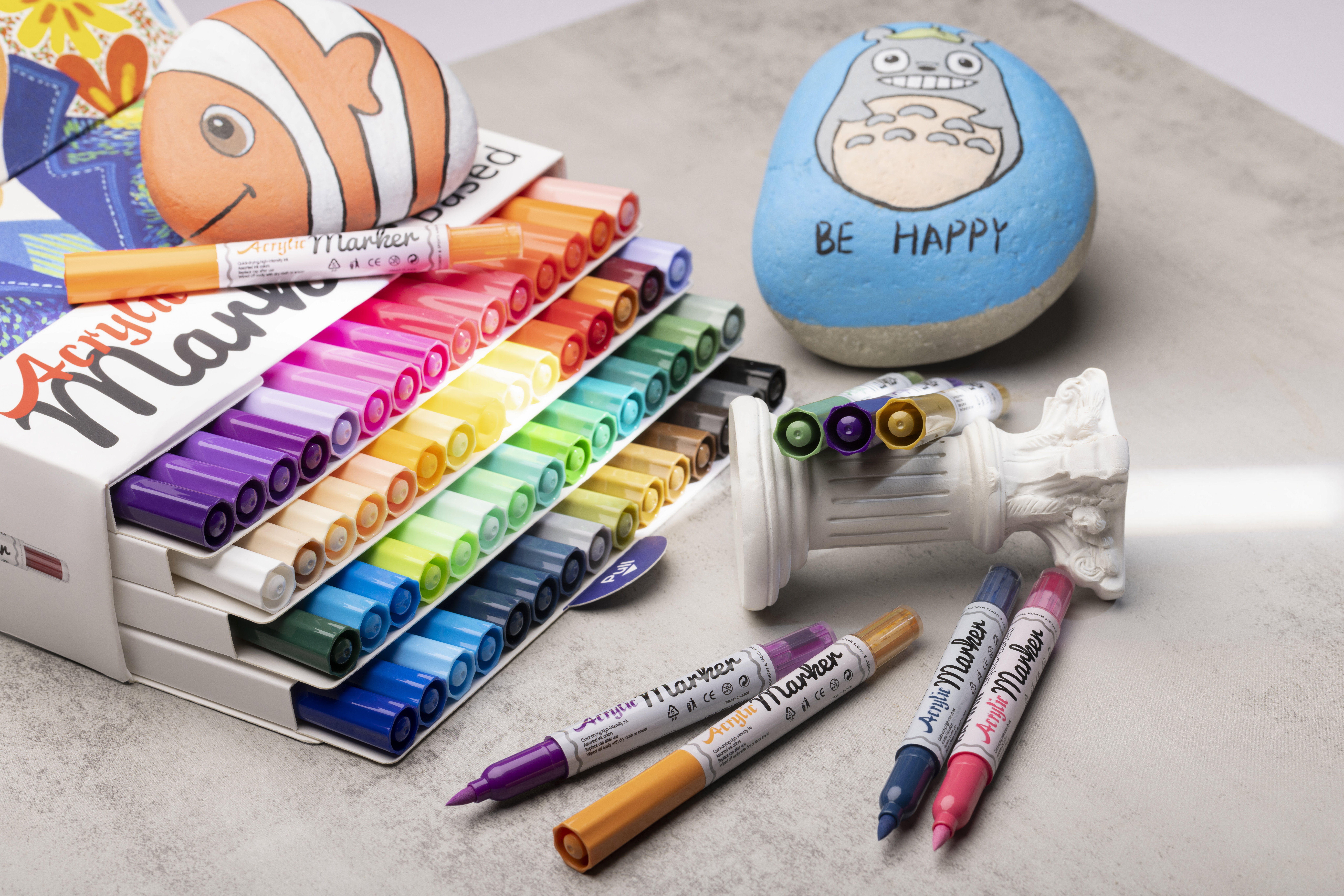

Acrylic paint markers are suitable for glass, ceramic, solid wood, MDF, stone, rock, canvas and paper. Their high-opacity pigment system is useful for DIY, crafts, school art, decoration and rock painting, including light colors over dark surfaces.
For best adhesion, remove dust, oil and surface contamination before marking.
Permanent and paint marker formats can mark galvanized iron, stainless steel, tools, components, packaging and other industrial surfaces. Applications include manufacturing identification, QC marking, construction work and selected automotive touch-up or reference marking.
For metal, documented surface-dry time is approximately 4–6 minutes with 24–36 hours for full cure under standard conditions.
PVC has relatively higher surface energy and can generally be marked directly after cleaning. PP and PE have low surface energy, so stable adhesion normally requires plasma surface activation or a suitable CPP/PP primer.
Without pretreatment, markings on PP or PE may look acceptable at first but can fail scratch or tape adhesion checks after drying.
Send a substrate sample or material description so the ink and pretreatment route can be matched before mass production.
Kaywin combines marker R&D, ink development, component production, assembly, quality control and packaging support in one manufacturing system. The factory has manufactured writing instruments since 2001 and supplies customers in more than 50 countries.
Consolidate paint marker, permanent marker and other marker categories with one manufacturing partner.
Compliance documentation is important for private-label launches and retail approvals. Kaywin supports internal laboratory testing together with third-party batch verification and can provide documentation for applicable OEM models.
Applicable testing and documentation includes ASTM D4236, CPSIA, ASTM F963, CA Prop 65 and LHAMA requirements for relevant marker programs.
Applicable standards include EN71-3, EN71-9, REACH and BS7272 cap-safety requirements, supported by ISO 9001, ISO 14001 and ISO 45001 management systems.
Acrylic marker options are odorless and permanent/metallic markers can use low-odor systems. Formulations are designed without heavy metals and plastic components use medical-grade PP.
Tell us the country, sales channel and age group so the relevant test scope can be confirmed before production.
Production checks cover ink formulation consistency, color consistency, writing line quality, nib strength, sliding/retraction force and writing distance. The standardized 350 m continuous line test gives buyers a measurable performance reference instead of a general quality claim.
Airtightness checks, cap seal inspection, inverted leakage testing, cap ventilation testing, valve/cartridge transport simulation and end-cap pull testing are used to reduce failures during handling and international shipment.
Unopened shelf life is typically 18–36 months depending on model. Recommended storage is 15°C–28°C and 40%–70% RH, away from direct sunlight and heat sources.
Selected permanent marker models can be reactivated after extended cap-off exposure under controlled conditions. Metallic markers should be stored horizontally, capped tightly and allowed to stand tip-down before use when required.
Ask for available test reports, sample evaluation and batch verification details for your selected model.
As a paint marker manufacturer and fabric marker supplier for selected textile-marking projects, Kaywin can customize more than the logo. Buyers can develop the ink, color, tip, barrel, cap, valve system, refill structure and retail packaging around a target market.
Choose from 180+ base formulations, request Pantone matching, metallic or glitter effects, custom opacity, and 13+ tip structures with line widths from 0.03 mm to 9.4 mm.
Customize barrel and cap geometry, valve systems, refillable cartridges and mold structures. Customer-provided designs or molds can also be evaluated for production.
Logo and barrel printing, multi-language artwork, retail packaging, gift boxes and multi-color sets can be developed for supermarket, e-commerce, art-supply and Back-to-School channels.
Send your logo, Pantone colors, reference sample or competitor benchmark to start OEM/ODM evaluation.
Yes. Kaywin paint markers can be configured for glass, metal, wood, ceramic, stone, paper and many plastics. Clean, oil-free surfaces provide better adhesion. PP and PE normally require pretreatment.
Not reliably in most cases. PP and PE have low surface energy, so plasma activation or an appropriate PP/CPP primer is recommended for stable adhesion. PVC generally performs better after normal cleaning.
Acrylic markers are waterproof and smudge-resistant after drying, and UV-resistant formulas are available. Outdoor color stability depends on formulation, exposure, climate and substrate.
Under 25°C and 50% RH, surface-dry time is typically 2–9 minutes depending on substrate, while full cure takes about 18–48 hours. Cold or humid conditions can extend both.
Unopened shelf life is typically 18–36 months when stored under the recommended temperature and humidity conditions. Specific models may differ.
Representative models range from about 200 m to 400 m. P-Q-2206-A acrylic paint marker reaches 400 m under the documented test conditions, while 2-Q-2409 refillable permanent marker reaches about 280 m.
Send your required ink type, surface, line width, quantity and destination market for a direct technical response.
Whether you are developing an acrylic paint marker set, a permanent industrial marker, a metallic craft range or a textile marker program, Kaywin can support product matching, OEM development, testing documentation and bulk production from one manufacturing partner.
